From 3D Model to Manufactured Package.

Photos from site and the workshop, plus GA drawings and 3D views from my projects. Confidential employer and customer documents are left out.

3D DESIGNFUEL SYSTEMSTANKSSKIDSFAT / SAT

Published Project Evidence

F-01: Emarat 40 FT dual-compartment mobile fueling unit, from commissioning and customer inspection to the piping inside the equipment cabinet.

Emarat 40 FT mobile fueling unit during commissioning, team on the tank roof — **Commissioning**Unit on site during commissioning, team working on the tank top.

Customer representatives inspecting the green Emarat mobile fueling unit in the workshop — **Customer inspection**Client walk-round of the completed unit in the workshop.

Engineers and site team inspecting the dispensing cabinet of the Emarat unit — **Cabinet inspection**Technical review at the dispensing/equipment cabinet.

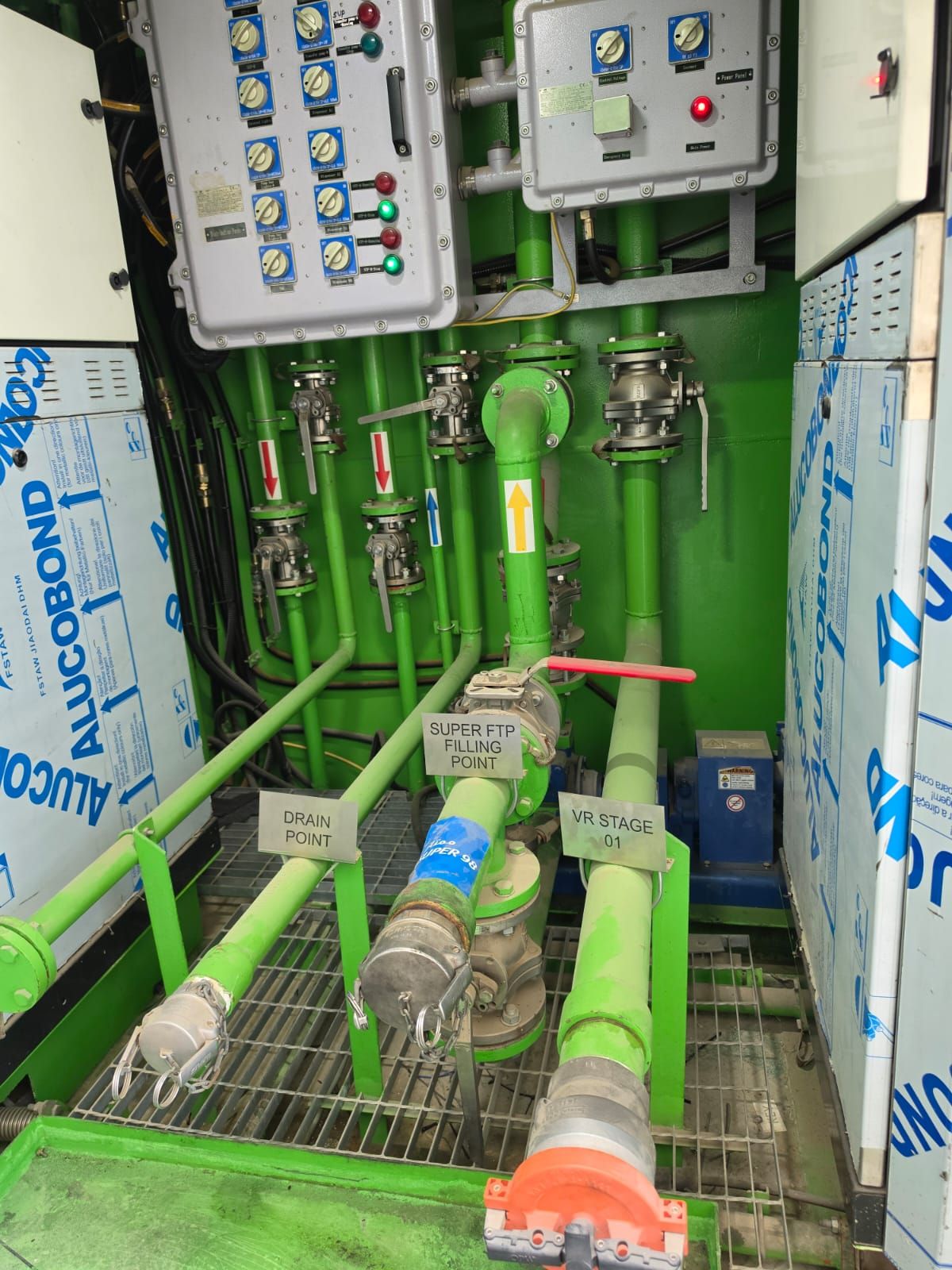

Fill point, vapor-recovery stage 1 and drain piping with cam-lock couplings and spill tray — **Fill, VR & drain points**Labelled fill, vapor-recovery and drain connections over the spill tray.

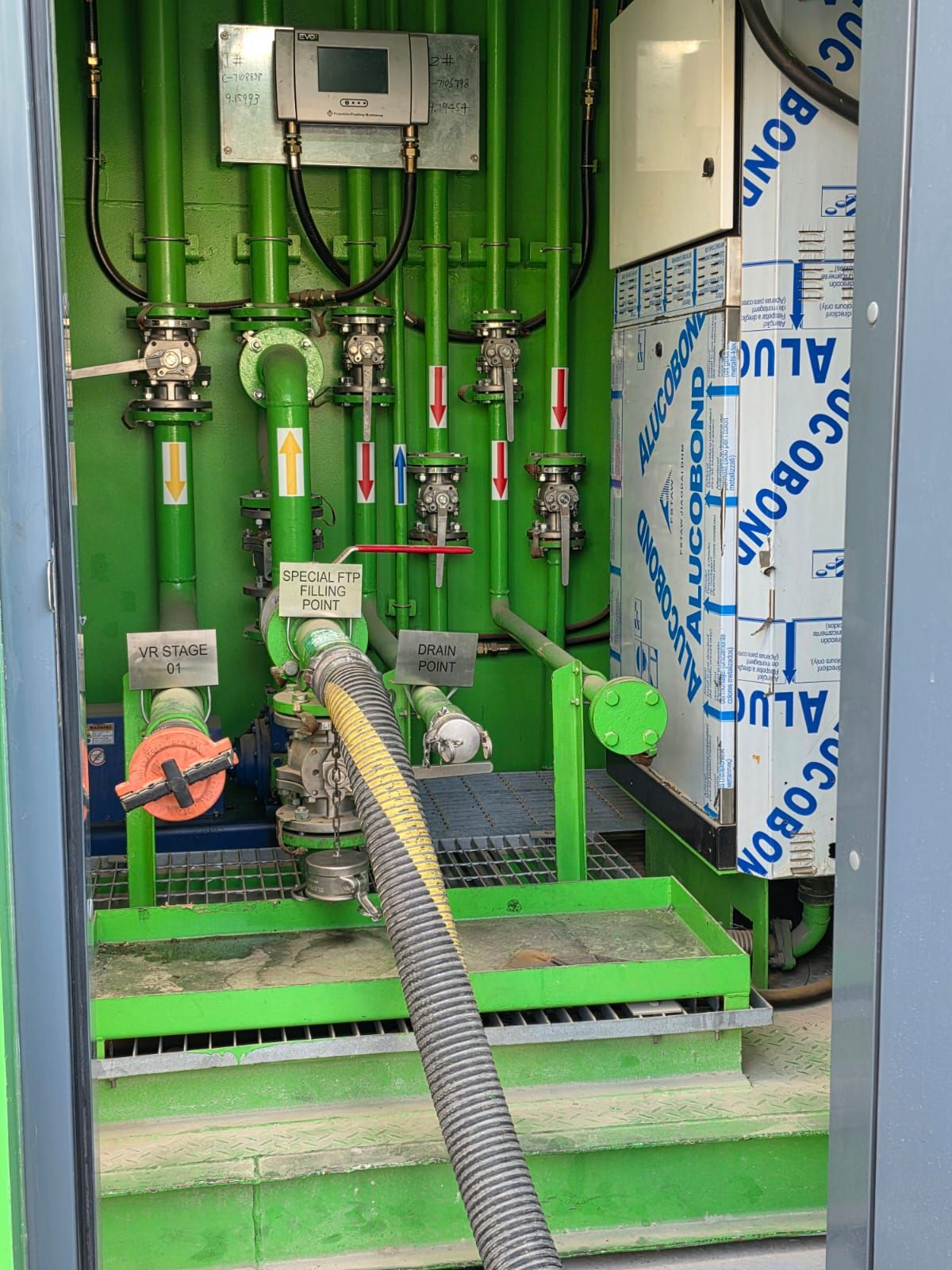

Product filling hose connected at the fill point inside the equipment cabinet — **Filling connection**Bulk filling hose on the fill point; manifold valves and ATG console above.

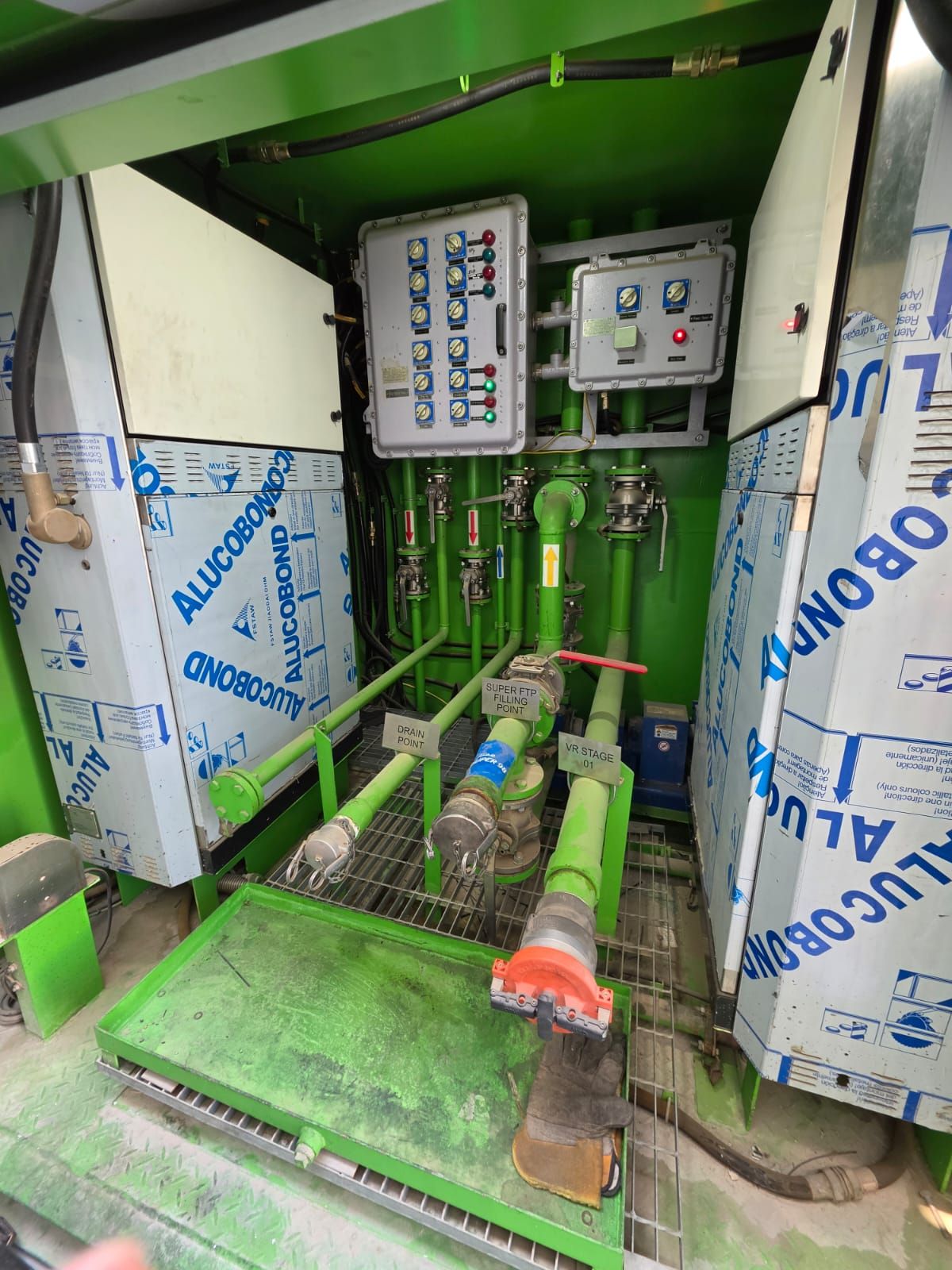

Valve manifold with explosion-proof control panels inside the equipment cabinet — **Manifold & Ex panels**Valve manifold, explosion-proof control stations and cam-lock outlets.

F-07 — Maser demo portable fueling unit

Demonstration unit with Maser Italia smart fleet-management integration: completed unit, commissioning and walk-rounds.

Team standing in front of the completed grey portable fueling unit in the workshop yard — **Completed unit**The finished demonstration unit in the workshop yard.

Engineer demonstrating the dispensing cabinet and fuel-management equipment to visitors — **Commissioning**Walk-through of the dispensing cabinet and fuel-management system at commissioning.

Project team and partners in front of the portable fueling unit — **Project team**Project team at the commissioned unit.

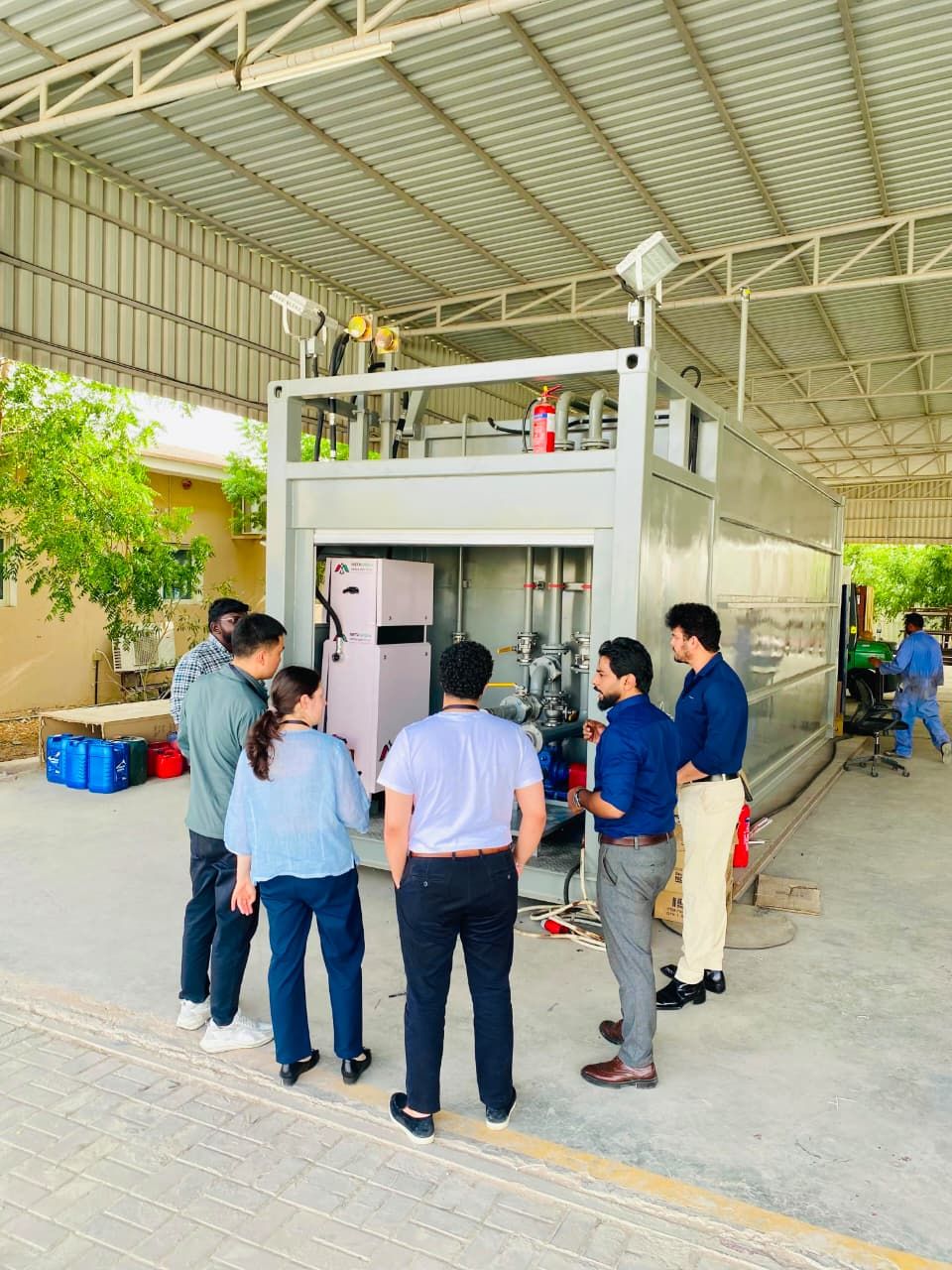

Visitors inspecting the portable fueling unit and its equipment bay — **Inspection walk-round**Equipment bay and dispensing side during a visitor walk-round.

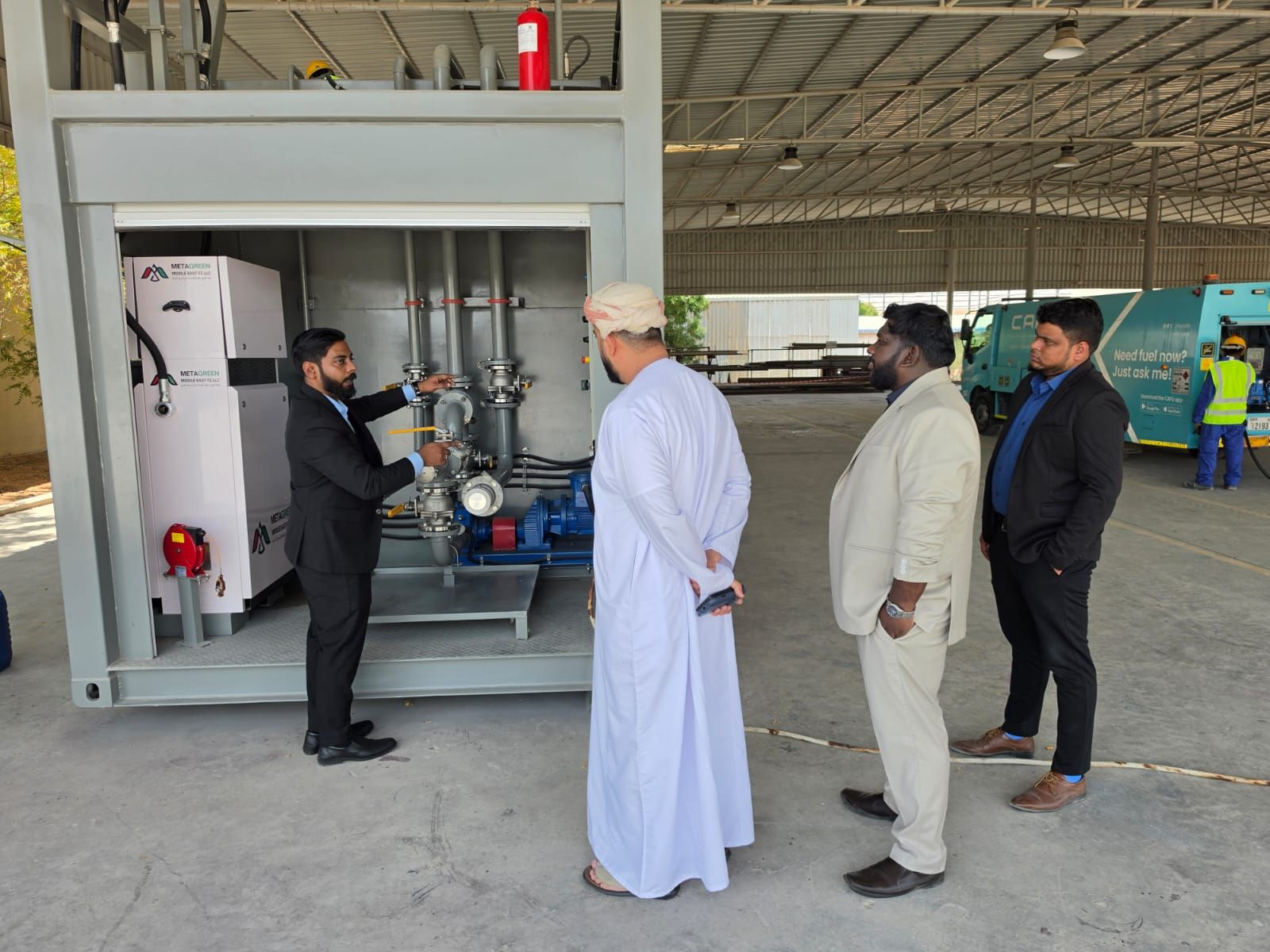

Engineer explaining the pump, valves and fuel-management cabinet of the demo unit to visiting client representatives — **Client verification visit**Walk-through of the pump set, valving and fuel-management cabinet.

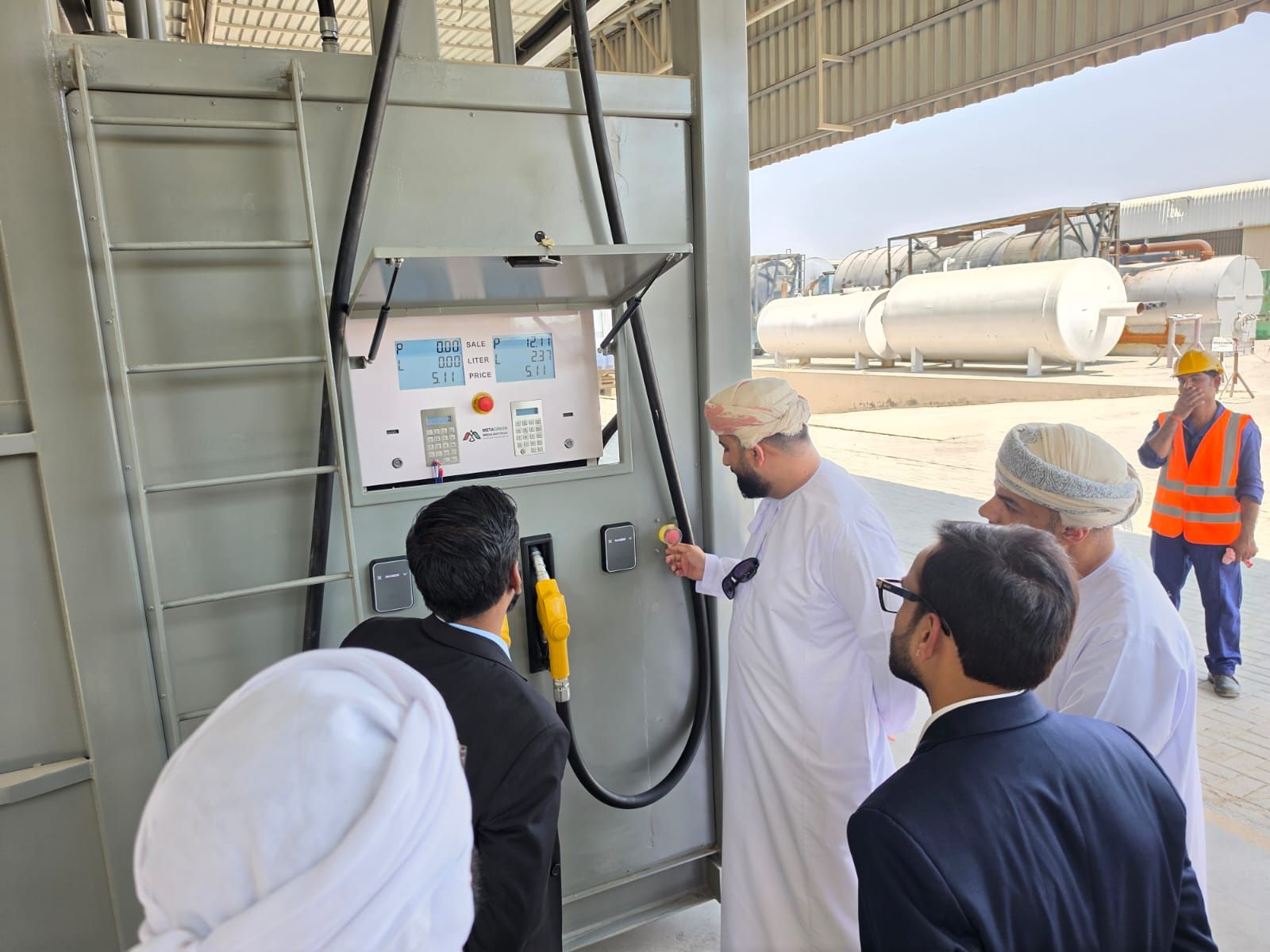

Visitors examining the dispenser and nozzle on the side of the demo unit — **Dispenser demonstration**Dispenser and nozzle demonstrated during the visit.

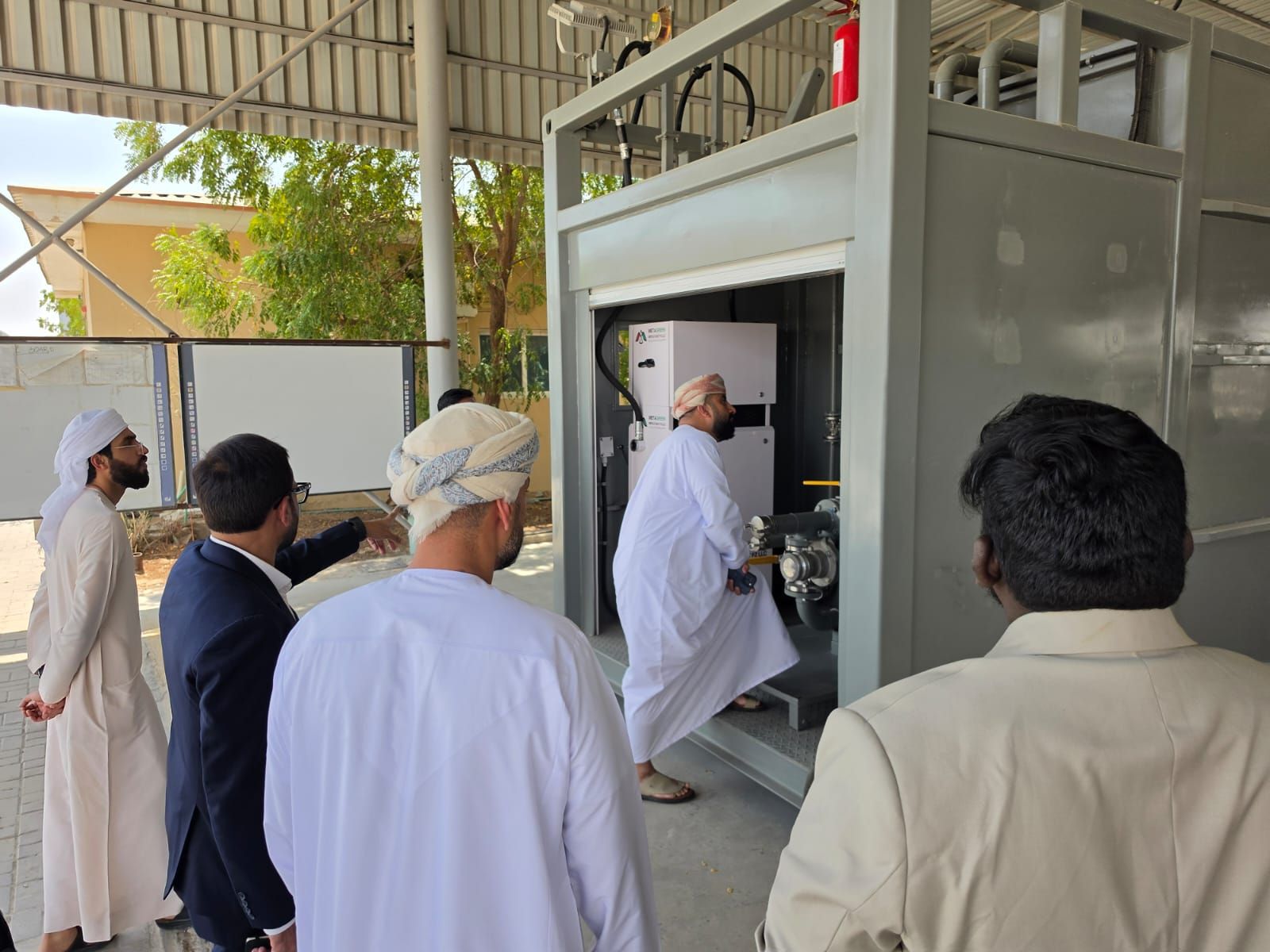

Visitors inspecting the equipment bay of the demo unit — **Equipment bay inspection**Visitors stepping into the equipment bay to inspect the installation.

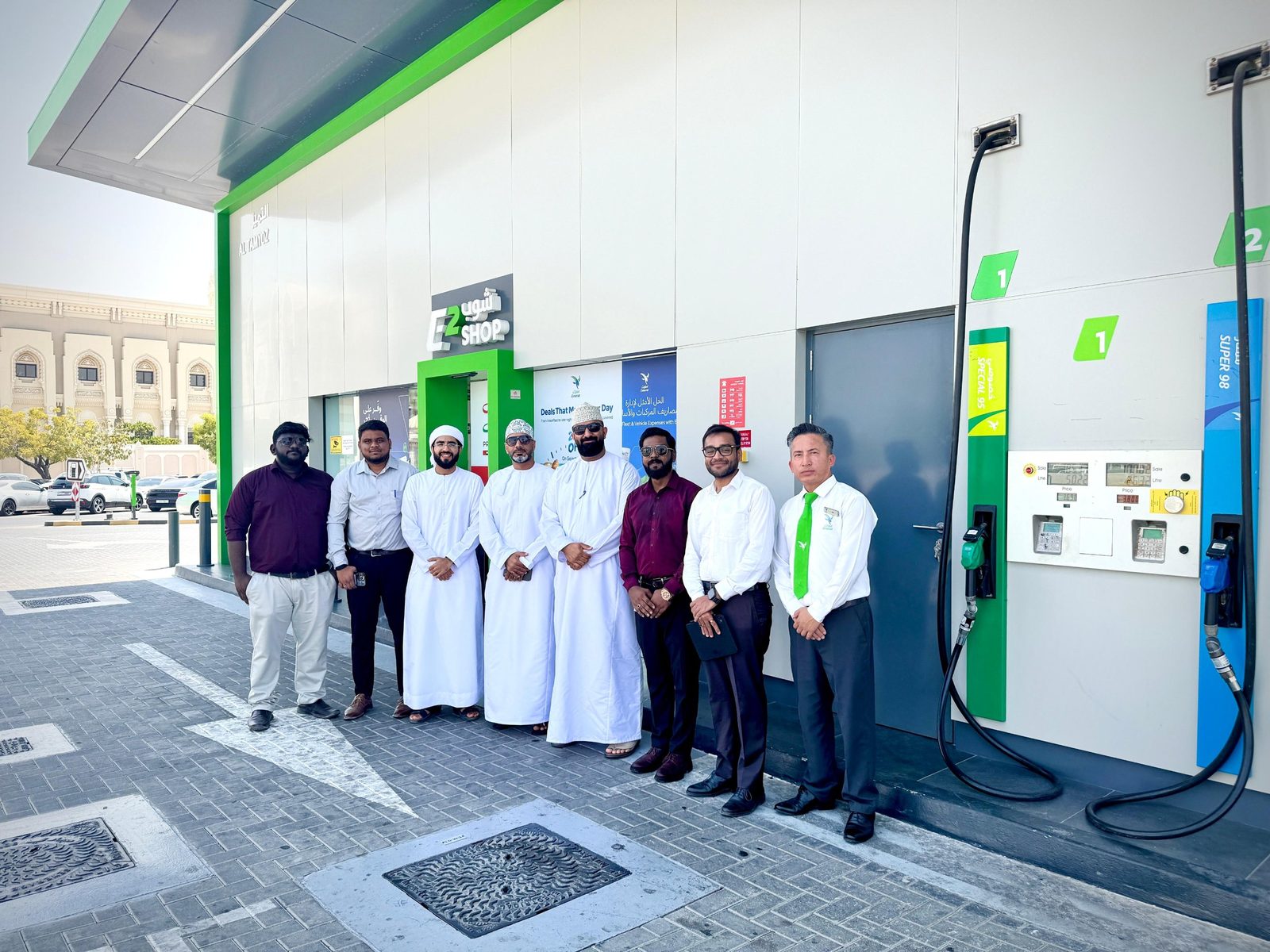

Visiting delegation and project team outside the shop at an Emarat service station — **Site visit**Delegation and project team at the Emarat station on the F-01 project.

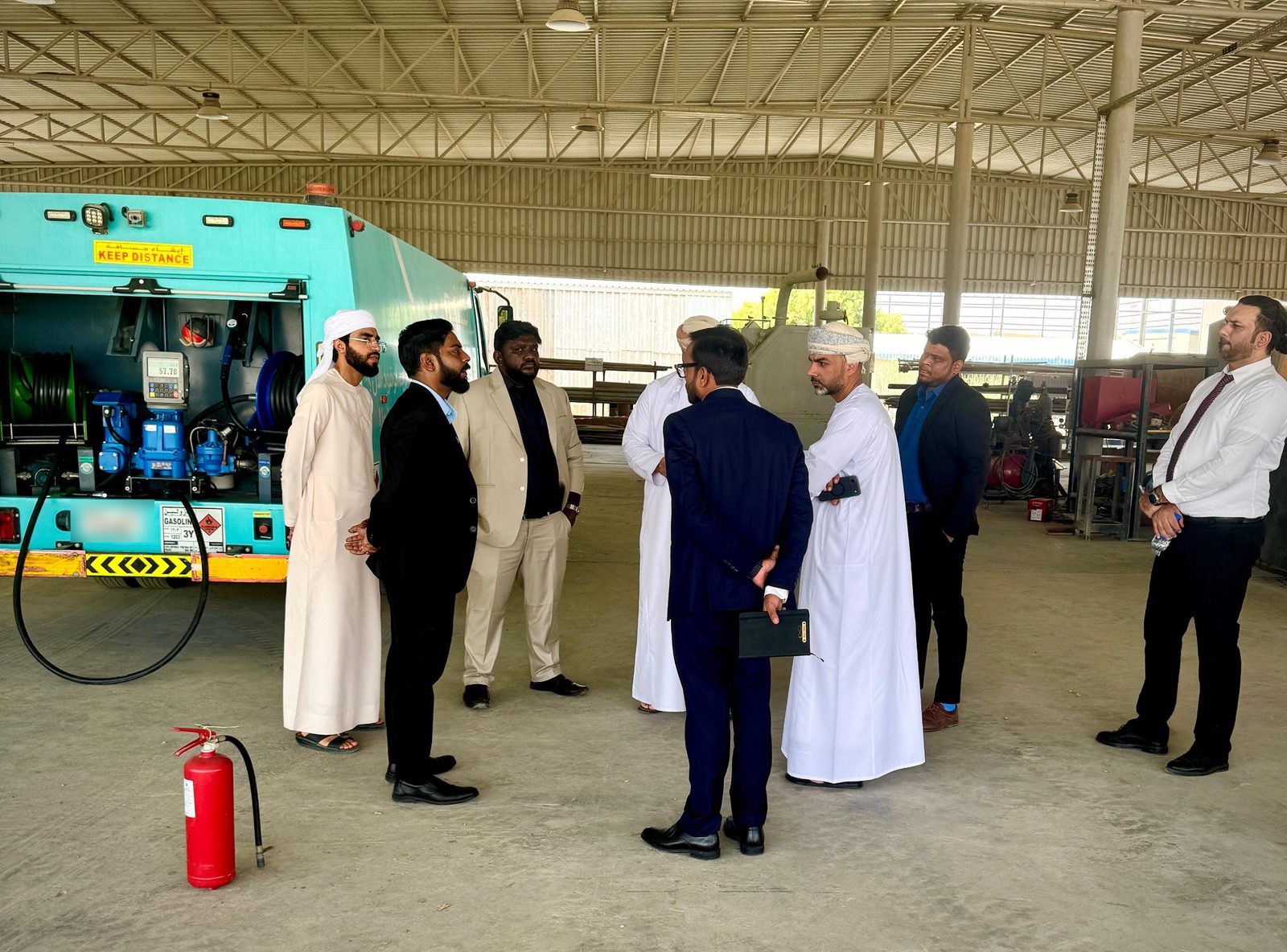

Visiting client delegation in discussion with the project team in the workshop — **Delegation briefing**Discussion with the visiting team in the workshop after the walk-round.

Design & factory evidence

GA drawings and 3D views I designed at Meta Green.

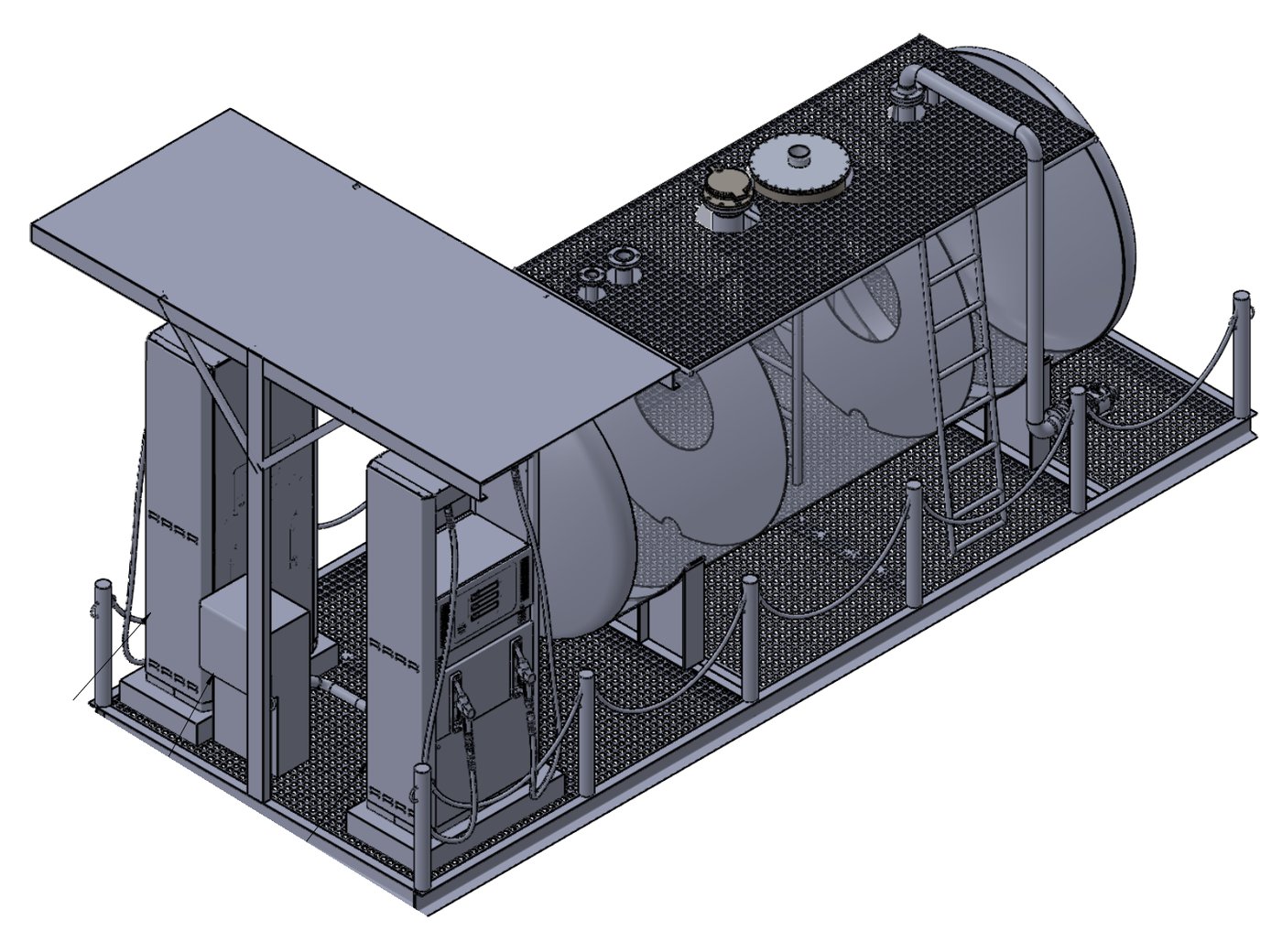

Isometric view of a 10,000 litre skid-mounted diesel dispensing unit with canopy and two dispensers — **F-02 · 10,000 L skid DDU · GA**Isometric from the GA I designed (RFQ stage, awaiting PO). Open the project page for the full drawing.

GA drawing of a 65,000 litre portable fuel station — **F-03 · 65,000 L portable fuel station · GA**40 ft UL 142 double-wall station I drew (RFQ stage, awaiting PO).

GA drawing of a 30,000 litre portable fuel station — **F-04 · 30,000 L portable fuel station · GA**20 ft UL 142 double-wall station I drew (RFQ stage, awaiting PO).

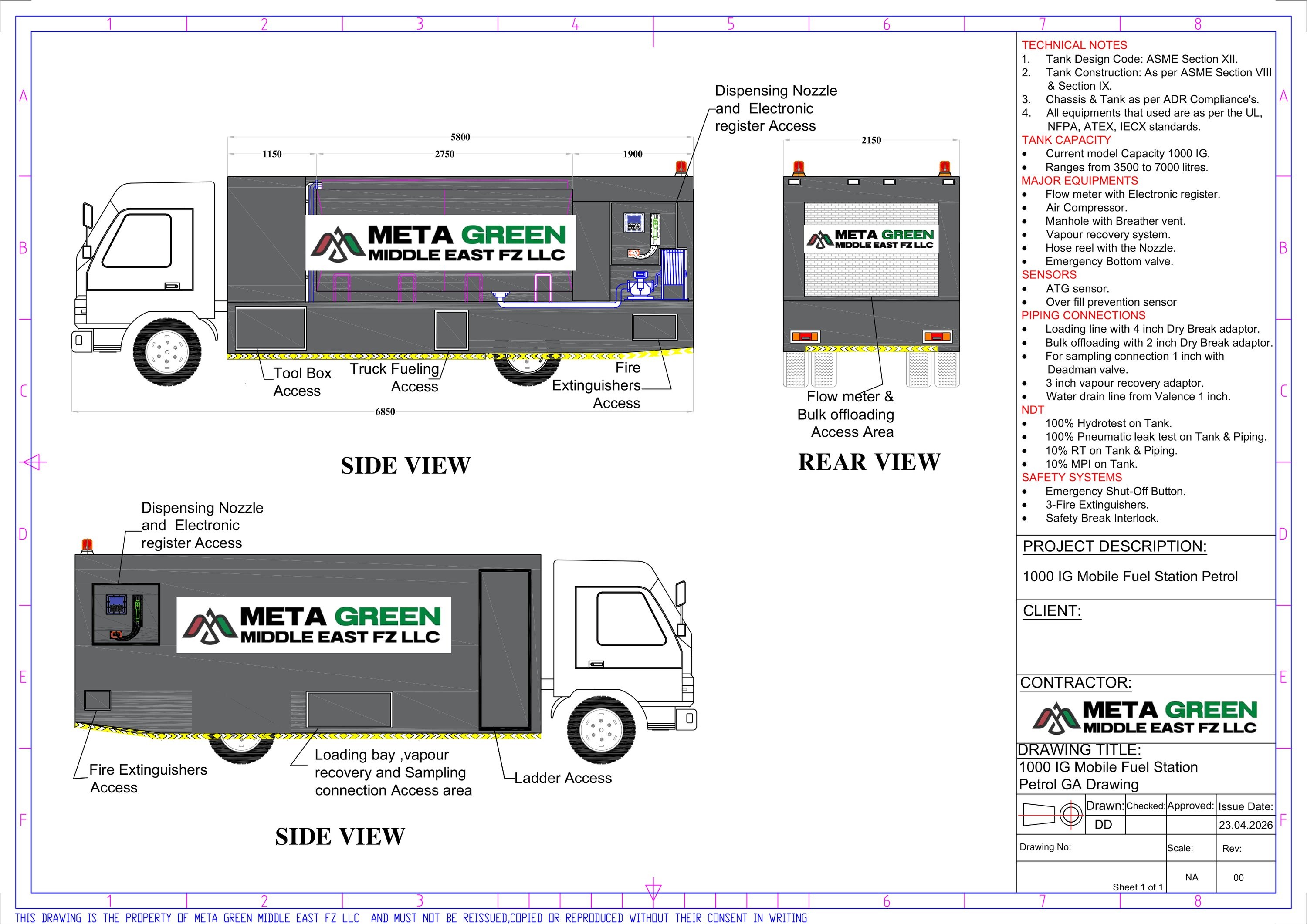

GA drawing of a 1,000 IG petrol mobile fuel station — **F-05 · 1,000 IG mobile fuel station, petrol · GA**Truck-mounted ADR station with enclosed body (RFQ stage, awaiting PO).

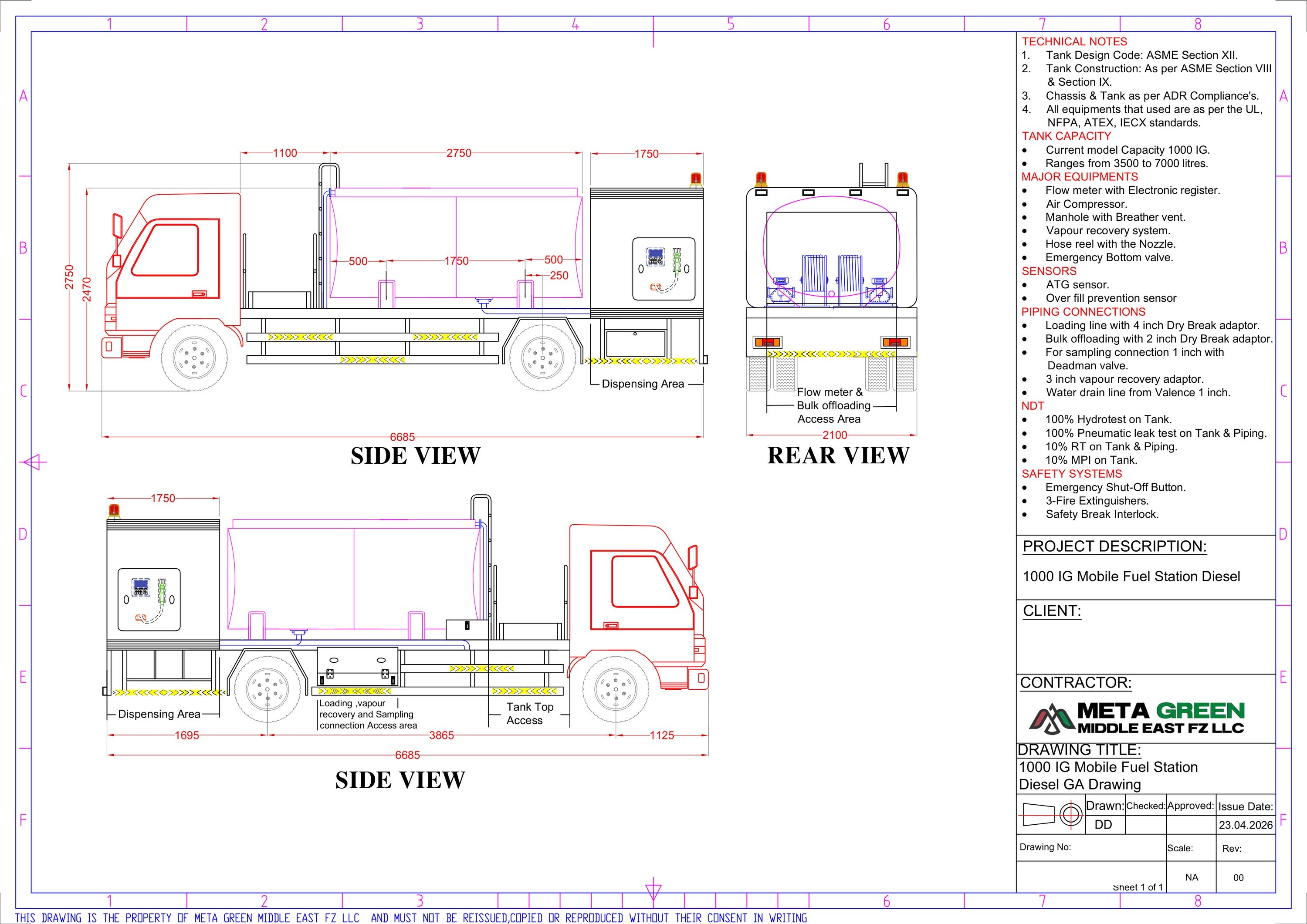

GA drawing of a 1,000 IG diesel mobile fuel station — **F-06 · 1,000 IG mobile fuel station, diesel · GA**Truck-mounted ADR station with rear dispensing cabinet (RFQ stage, awaiting PO).

Portfolio contribution: Head of Design Department · Project Coordinator · Lead Mechanical / Package Designer. Scope included 3D design, 2D engineering drawings, procurement and production coordination, instrumentation coordination, FAT and SAT involvement.

Workplace

Day-to-day life at the two places I've worked on packages: DesignTech Systems in India and Meta Green in the UAE.

DesignTech office & team life 2021 – 2022

Receiving the winner's trophy and certificate at the cricket tournament — **🏆 Cricket tournament winner**Trophy & certificate

Large group of colleagues celebrating with the trophy on a turf ground — **Winners' celebration**With colleagues after the final

Two teams lined up on the turf before a cricket match — **Match day**Teams on the turf

Team selfie in the DesignTech office during a festival celebration — **My design team members**Celebration at the office

Team in traditional clothes at the DesignTech office — **Office team**Festival day at the office

Meta Green Middle East 2025 – present

Damodar Dasi at his desk in the Meta Green office — **At my desk**Design office, Meta Green Middle East.

Workshop and office staff gathered together in the canteen — **Workshop & office team**Production and engineering staff together.

Meta Green and Maser Italia teams in the meeting room in front of a welcome slide — **Partner welcome**Welcoming the Maser Italia team.

Technical presentation to partners in the meeting room — **Technical presentation**Operational scenarios and system response.

Partner meeting around the conference table with a presentation on screen — **Partner meeting**Working session with visiting partners.

Presenter giving a company overview to visiting clients — **Client presentation**Company overview for visiting clients.

Welcome to Meta Green presentation for visitors — **Company presentation**Welcome presentation for visitors.

Visiting team presenting to Meta Green staff — **Visitor presentation**Presentation from a visiting equipment company.

Engineers in a meeting room working on laptops with a screen showing a dashboard — **Working session**Engineering working session in the meeting room.

Explore by Engineering Area

01 · FUEL

Fuel Systems

Mobile fueling units, portable fuel stations, dispensing equipment, vapor recovery and safety systems.

02 · TANKS

Storage Tanks

Fuel and process tank design evidence, nozzle arrangements, supports, dimensions and fabrication details.

03 · SKIDS

Mechanical & Structural Skids

Pump, equipment-support, tank, instrument and fuel skids, structural frames and platforms.

04 · EXECUTION

Manufacturing · FAT · SAT

Procurement, manufacturing, inspection, FAT and SAT once the drawings are issued.

Featured Project Trail

F-01

Emarat Mobile Fueling Unit

42,600 L gross dual-compartment unit · UAE

F-07

Maser Demo Fueling Unit

Smart fleet-management demo unit · UAE

F-02–06

Fuel Systems RFQ Designs

1,000 IG to 65,000 L · awaiting PO

S-01

Storage Tank Portfolio

~25 representative designs · 500 L–60 KL

S-02

Mechanical & Structural Skids

Fuel skid worked example · frames and platforms

From Drawing to Site

Requirement & Design

Turn the customer's requirements into a mechanical concept and a coordinated 3D arrangement that can be built.

Drawings & Integration

Develop/review GA and fabrication drawings, piping interfaces, equipment connections and supporting details.

Procurement & Manufacturing

Support MTO/BOM, vendor coordination, production interfaces and manufacturing queries.

FAT / Inspection

Support testing, customer inspection, punch-point closure and final package review.

On Site

Photos of the finished units in the workshop and on site.
